以质量中心定位多个仓库(使用R)

``````# 计算加权质量中心的函数。
center_of_mass <- function(x,y,w){
c(crossprod(x,w)/sum(w),crossprod(y,w)/sum(w))
}

# 用于指定初始中心的函数
initial_centers <- function(customers,centers){
quantiles <- c()
for(i in 1:centers){
quantiles <- c(quantiles,i*as.integer(nrow(customers)/centers))
}
quantiles
}``````

``````customer_df <- as.data.frame(matrix(nrow=1000,ncol=3))
colnames(customer_df) <- c("lat","long","demand")
customer_df\$lat <- runif(n=1000,min=-90,max=90)
customer_df\$long <- runif(n=1000,min=-180,max=180)
customer_df\$demand <- runif(n=1000,min=0,max=10)
``````##         lat       long   demand
## 1 -42.50378  137.62188 9.608067
## 2  47.79308  101.30536 9.510299
## 3 -14.17326   24.38595 1.610305
## 4 -85.34352 -151.29061 6.394425
## 5 -26.31244  112.75030 6.972434
## 6  55.01428   58.17198 2.797564``````

``````centeroids <- initial_centers(customer_df[,-3],20)
cluster_obj <- kmeans(customer_df[,-3],centers = customer_df[centeroids,-3])
customer_df\$group <- cluster_obj\$cluster
``````##         lat       long   demand group
## 1 -42.50378  137.62188 9.608067     2
## 2  47.79308  101.30536 9.510299     4
## 3 -14.17326   24.38595 1.610305     6
## 4 -85.34352 -151.29061 6.394425     8
## 5 -26.31244  112.75030 6.972434    18
## 6  55.01428   58.17198 2.797564    16``````

``````multiple_centers_of_mass <- function(df){
result_df <- as.data.frame(matrix(nrow=nrow(df),ncol=6))
colnames(result_df) <- c("lat","long","demand","group","com_lat","com_long")
result_df[,c(1,2,3,4)] <- df
for(i in 1:length(unique(df[,4]))){
sub_df <- result_df[result_df\$group==i,]
com <- center_of_mass(sub_df\$lat,sub_df\$long,sub_df\$demand)
result_df\$com_lat[result_df\$group==i] <- com[1]
result_df\$com_long[result_df\$group==i] <- com[2]
}
result_df
}``````

``````com_df <- multiple_centers_of_mass(customer_df)
``````##         lat       long   demand group   com_lat   com_long
## 1 -42.50378  137.62188 9.608067     2 -25.97973  158.17382
## 2  47.79308  101.30536 9.510299     4  63.58158   84.91329
## 3 -14.17326   24.38595 1.610305     6 -21.20417   26.80993
## 4 -85.34352 -151.29061 6.394425     8 -64.12072 -145.48419
## 5 -26.31244  112.75030 6.972434    18 -33.15564   99.15738
## 6  55.01428   58.17198 2.797564    16  35.04988   44.42388``````

``````library(ggplot2)

lat_wh_vc <- unique(com_df\$com_lat)
long_wh_vc <- unique(com_df\$com_long)
warehouse_df <- as.data.frame(matrix(nrow=length(lat_wh_vc),ncol=2))
warehouse_df[,1] <- lat_wh_vc
warehouse_df[,2] <- long_wh_vc
colnames(warehouse_df) <- c("lat","long")
ggplot(warehouse_df) + geom_point(mapping = aes(x=lat,y=long)) + xlim(-90,90) + ylim(-180,180)``````

``library(viridis)``
``## Warning: package 'viridis' was built under R version 3.5.3``
``## Loading required package: viridisLite``

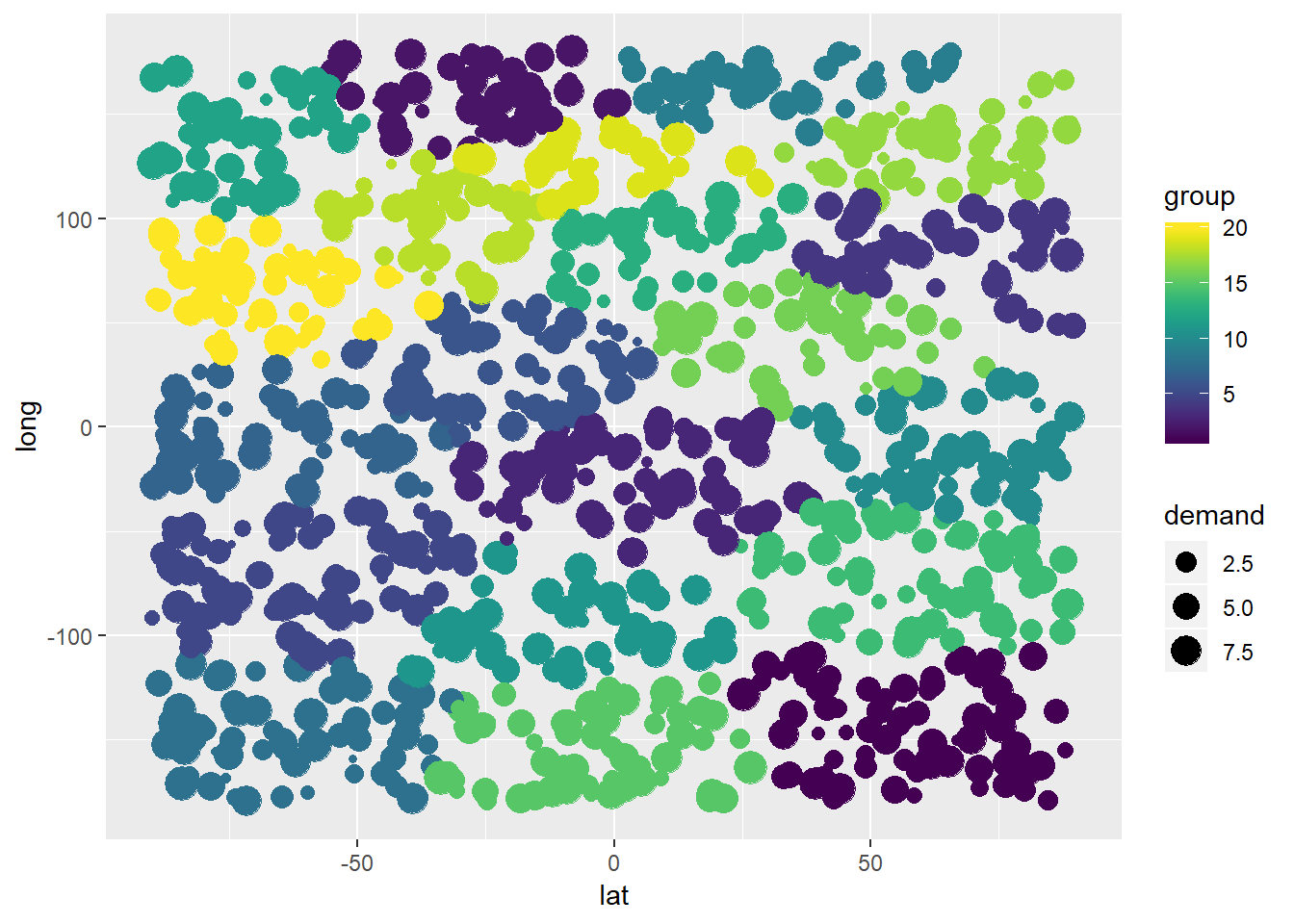

``````ggplot(com_df) + geom_point(mapping = aes(x=lat,y=long,color=group,size=demand)) +
xlim(-90,90) + ylim(-180,180) + scale_color_viridis(discrete = FALSE, option = "D") + scale_fill_viridis(discrete = FALSE) ``````
