In previous articles I took a look at US automotive industry. I considered data collected by FRED and US bureau of labor statistics. The data showed strong declines in US automotive production output and US sales of imported vehicles – especially in most recent years. The data also showed that average hourly earnings of employees in US automotive industry have considerably increased in most recent years.

In this article I will take a closer look at German automotive industry by analyzing data provided by VDA. VDA is industry group representing automobile manufacturers in Germany. The data I analyze can be retrieved here: https://www.vda.de/de/services/zahlen-und-daten/monatszahlen.html

The data contains information on monthly production output, export volumes and vehicle registrations in Germany. I exported the data form their website and stored it in a csv-file.

I start my analysis by reading in the data from bespoken csv-file:

# use base function to read in csv data
vda_df = read.csv2("vda data.csv",
                  header=FALSE,
                  sep=",",
                  stringsAsFactors = FALSE)

# rename rows
rownames(vda_df) <- c("year",
                      "month",
                      "registeredTotal",
                      "registeredGermans",
                      "registeredOthers",
                      "exported",
                      "produced")

# transpone matrix, using base function "t"
vda_df <- t(vda_df)

# view header of transposed data frame
head(vda_df)

##    year   month     registeredTotal  registeredGermans
## V1 "year" "month"   "Neuzulassungen" "       dt. Marken inkl. Konzernmarken"
## V2 "2009" "Januar"  "189.385"        "128.060"
## V3 "2009" "Februar" "277.740"        "173.452"
## V4 "2009" "März"    "400.965"        "245.865"
## V5 "2009" "April"   "379.626"        "247.296"
## V6 "2009" "Mai"     "384.578"        "257.070"
##    registeredOthers      exported  produced
## V1 "       ausl. Marken" "Export"  "Produktion"
## V2 "61.325"              "223.281" "310.113"
## V3 "104.288"             "215.549" "297.921"
## V4 "155.100"             "276.910" "435.693"
## V5 "132.330"             "214.966" "373.308"
## V6 "127.508"             "251.119" "427.239"

The first row contains the German headers. We do not need them anynmore:

vda_df <- vda_df[-1,]
vda_df <- vda_df[1:(11*12),]# I noticed that in my csv-file there were some duplicates, which is why this line was added
head(vda_df)

##    year   month     registeredTotal registeredGermans registeredOthers
## V2 "2009" "Januar"  "189.385"       "128.060"         "61.325"
## V3 "2009" "Februar" "277.740"       "173.452"         "104.288"
## V4 "2009" "März"    "400.965"       "245.865"         "155.100"
## V5 "2009" "April"   "379.626"       "247.296"         "132.330"
## V6 "2009" "Mai"     "384.578"       "257.070"         "127.508"
## V7 "2009" "Juni"    "427.111"       "290.176"         "136.935"
##    exported  produced
## V2 "223.281" "310.113"
## V3 "215.549" "297.921"
## V4 "276.910" "435.693"
## V5 "214.966" "373.308"
## V6 "251.119" "427.239"
## V7 "312.299" "478.133"

Numeric data is currently still considered a character strings. Also, the data is German. The German “.” is the US American “,”. In below code snippet I convert the data into numerics:

# take out the "." and convert character strings into numerics
for(i in 3:7){
  vda_df[,i] = as.numeric(gsub(pattern=".",
                    replacement="",
                    x=vda_df[,i],
                    fixed=TRUE))
}

Now, I can create a time series plot in ggplot2, showing the mont by month absolute figures by relevant category (from Jan 2009 to Dec 2019, according to VDA data). For this I first need to construct a plot-friendly data frame:

# create a plot-friendly data frame
values_vc = c()
for(i in 3:7){
  values_vc = c(values_vc,vda_df[,i])
}

# create template for plot-friendly data frame
plot_df = as.data.frame(matrix(nrow=132*5,ncol=5))
colnames(plot_df) = c("year","month","timeIndex","series","values")

# populate template (plot_df)
plot_df$values = values_vc

plot_df$year = rep(as.vector(vda_df[,1]),
                   times = 5)

plot_df$month = rep(as.vector(vda_df[,2]),
                    times=5)

plot_df$timeIndex = rep(1:132,
                        times=5)

plot_df$series = c(rep("regTotal",times=132),
                   rep("regGermans",times=132),
                   rep("regOthers",times=132),
                   rep("exported",times=132),
                   rep("produced",times=132))

# show header of populated template
head(plot_df)

##   year   month timeIndex   series values
## 1 2009  Januar         1 regTotal 189385
## 2 2009 Februar         2 regTotal 277740
## 3 2009    März         3 regTotal 400965
## 4 2009   April         4 regTotal 379626
## 5 2009     Mai         5 regTotal 384578
## 6 2009    Juni         6 regTotal 427111

# show tail of populated template
tail(plot_df)

##     year     month timeIndex   series values
## 655 2019      Juli       127 produced 355112
## 656 2019    August       128 produced 311919
## 657 2019 September       129 produced 416400
## 658 2019   Oktober       130 produced 391949
## 659 2019  November       131 produced 417982
## 660 2019  Dezember       132 produced 275920

Having produced a plot-friendly data frame I can now visualize the data published by VDA:

# load plot and dplyr
library(ggplot2)
library(dplyr)

##
## Attaching package: 'dplyr'

## The following objects are masked from 'package:stats':
##
##     filter, lag

## The following objects are masked from 'package:base':
##
##     intersect, setdiff, setequal, union

# plot export volume development
x = dplyr::filter(plot_df,series=="exported")
plot(x=x$timeIndex,
     y=x$values,
     type="b",
     main = "German automobile export volume, monthly (VDA, 2009 - 2019)",
     xlab = "time index (Jan 2009 - Dec 2019)",
     ylab = "cars exported from Germany",
     col="red",
     cex=0.5,
     axes = FALSE)

# plot production output development
x = dplyr::filter(plot_df,series=="produced")
plot(x=x$timeIndex,
     y=x$values,
     type="b",
     main = "German automobile production output, monthly (VDA, 2009 - 2019)",
     xlab = "time index (Jan 2009 - Dec 2019)",
     ylab = "cars produced from Germany",
     col="red",
     cex=0.5,
     axes = FALSE)

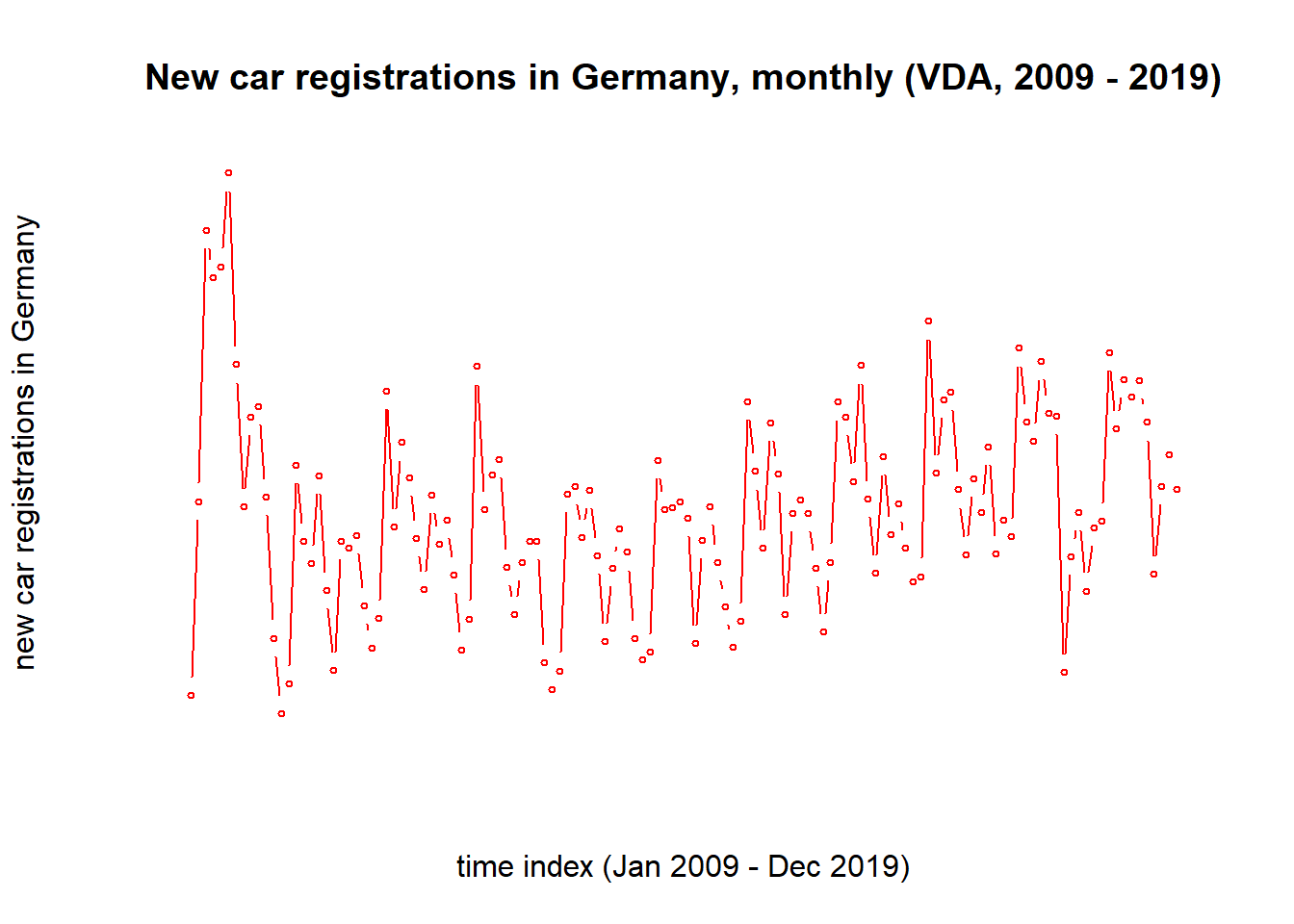

# plot number of vehicles registered in Germany
x = dplyr::filter(plot_df,series=="regTotal")
plot(x=x$timeIndex,
     y=x$values,
     type="b",
     main = "New car registrations in Germany, monthly (VDA, 2009 - 2019)",
     xlab = "time index (Jan 2009 - Dec 2019)",
     ylab = "new car registrations in Germany",
     col="red",
     cex=0.5,
     axes = FALSE)

Key take-aways are as follows:

– production output and export levels are back at 2009 levels, which was a year of crisis in automotive industry

– domestic demand is steady and slightly growing

– data suggests correlation between low exports and low production output

The data confirms that German automotive industry is facing difficult times.

Linnart Felkl

Data scientist focusing on simulation, optimization and modeling in R, SQL, VBA and Python
