In a previous post I provided an introduction to basics in AutoCAD. E.g. I introduced zoom in AutoCAD, pan in AutoCAD, overlapping objects in AutoCAD and unit display settings in AutoCAD. I also created a simple line object in AutoCAD aswell as a simple AutoCAD polyline.

In this post I will create a simple circle.

Enter the CIRCLE command.

Click where you want the center of the circle to be located.

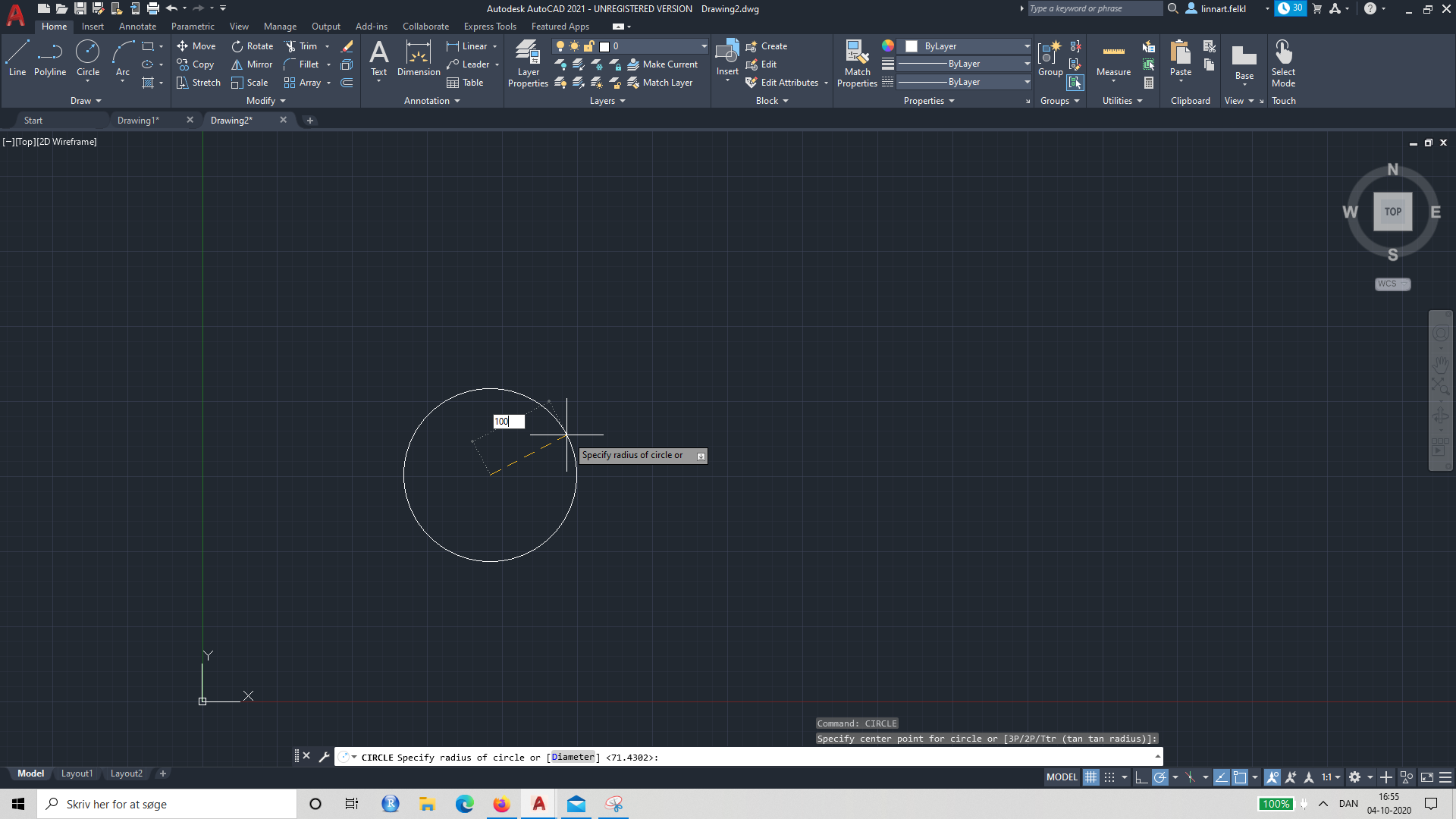

Move the mouse to increase the diameter or enter the radius directly by typing. Press enter. Your circle is complete.
